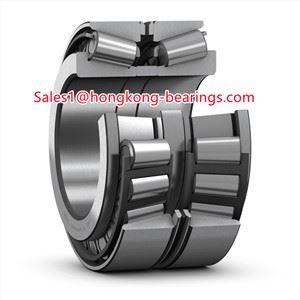

Z-578129.TR2, koko 415,925x590,55x244,475 mm kaksirivinen kartiorullalaakeri
Yleiskatsaus
Suunnittelu 9:
■ Laakerit tappikehillä ja sisemmällä välirenkaalla.
■ Voiteluura ja voitelureiät sekä kiinnitysreikä
ulkorenkaassa.
Kaksiriviset kartiorullalaakerit tuuman kokoisina O--asennossa; ilman tiivisteitä; lämpötilat -30 asteesta +150 asteeseen voiteluaineesta riippuen.
Poran halkaisija - 415,925 mm; Ulkohalkaisija-590,55 mm;Leveys-244,475 mm; Paino 207 kg;Cr=3550 kN;C0r=8900 kN;Kur =820 kN.
Tekniset tiedot
| Mitat &Tekniset tiedot | |
| Osa NO. | Z-578129.TR2 - Kaksirivinen kartiorullalaakeri |
| Merkki | FAG valmistettu Saksassa ja SDVV/ZBM-merkki valmistettu Kiinassa |
| Päämitat | 415,925x590,55x244,475 mm |
| d | 415,925 mm |
| D | 590,55 mm |
| T | 244,475 mm |
| C | 193,675 mm |
| e | 0,34 mm |
| r1, r2 min. | 6,4 mm |
| r3, r4 min | 1,5 mm |
| Cr | 3550 kN |
| C0r | 8900 kN |
| Cur | 820 kN |
| M | 207 kg |
Meillä on myös sama laakerisarja
| Nimitys | Design | Massa m ≈kg |
Mitat | Perus | ladata | Luokituksen laskentatekijät | Väsymys | rajakuorma Vaihtomerkintä | |||||||||
| d | D | T | c | r,r₂ min. |
r3,「4 min. |
dyn. | stat. | e | Y₁ | Y₂ | Y₀ | Cur | TDO-tyypit | ||||
| Cr | Cor | ||||||||||||||||
| kN | kN | kN | |||||||||||||||
| Z-527366.TR2 | 7 | 737 | 371,475 | 50,165 | 155,575 | 10,795 | 64 | 15 | 1600 | 3650 | 44 | 153 | 228 | 15 | EE231462.976CD | ||
| Z-526251.TR2 | 6 | 668 | 381 | 508 | 1,397 | 889 | 64 | 15 | 1280 | 3200 | 53 | 127 | 189 | 124 | 305 | EE192150.201CD | |
| Z-547099.TR2 | 7 | 238 | 381 | 59,055 | 244,475 | 193,675 | 64 | 15 | 3350 | 8300 | 34 | 198 | 294 | 193 | M268730.710CD | ||
| Z-581097.TR2 | 9 | 247 | 381 | 59,055 | 244,475 | 193,675 | 64 | 15 | 3550 | 8900 | 34 | 198 | 294 | 193 | 820 | M268730.710CD | |
| Z-505615.TR2 | 6 | 159 | 384,175 | 5,461 | 22,225 | 1,778 | 64 | 15 | 3050 | 7800 | 33 | 203 | 302 | 198 | HM266449.HM410CD | ||
| Z-579745.TR2 | 9 | 159 | 384,175 | 5,461 | 22,225 | 1,778 | 64 | 15 | 3050 | 7900 | 33 | 203 | 302 | 198 | 750 | HM266449.410CD | |
| Z-505611.02.TR2 | 6 | 965 | 396,875 | 5,461 | 15,875 | 117,475 | 64 | 15 | 1770 | 4250 | 47 | 143 | 212 | 14 | 390 | EE234156.216D | |
| Z-525845.TR2 | 7 | 117 | 4,064 | 5,461 | 185,738 | 147,638 | 64 | 15 | 2260 | 6200 | 45 | 15 | 224 | 147 | 590 | M667944.911CD | |
| Z-507670.TR2 | 6 | 110 | 4,064 | 574,675 | 157,162 | 106,362 | 64 | 15 | 1690 | 3650 | 51 | 131 | 196 | 128 | 325 | NA285160.228D | |
| Z-515494.TR2 | 7 | 167 | 4,064 | 609,524 | 1,778 | 13,335 | 81 | 15 | 2470 | 5500 | 47 | 144 | 215 | 141 | 495 | EE736160.239CD | |
| Z-578129.TR2 | 9 | 207 | 415,925 | 59,055 | 244,475 | 193,675 | 64 | 15 | 3550 | 8900 | 34 | 198 | 294 | 193 | 820 | M268749.710CD | |
| Z-517498.01.TR2 | 7 | 200 | 415,925 | 59,055 | 244,475 | 193,675 | 64 | 15 | 3600 | 9150 | 33 | 203 | 302 | 198 | M268749.710CD | ||
| Z-517498.TR2 | 6 | 200 | 415,925 | 59,055 | 244,475 | 193,675 | 64 | 15 | 3600 | 9150 | 33 | 203 | 302 | 198 | M268749.710CD | ||
| Z-527127.TR2 | 7 | 955 | 4,318 | 5,715 | 155,575 | 111,125 | 33 | 15 | 2000 | 4800 | 55 | 124 | 184 | 121 | 445 | LM869448.410CD | |
| Z-512346.TR2 | 6 | 241 | 447,675 | 635 | 257,175 | 206,375 | 64 | 16 | 4200 | 10400 | 33 | 207 | 309 | 203 | 940 | M270749.M270710D | |
| Z-521467.01.TR2 | 7 | 241 | 447,675 | 635 | 257,175 | 206,375 | 64 | 15 | 4200 | 10400 | 33 | 207 | 309 | 203 | 940 | M270749.710CD | |
| Z-579097.TR2 | 8 | 244 | 447,675 | 635 | 257,175 | 206,375 | 64 | 15 | 4300 | 10700 | 33 | 207 | 309 | 203 | 970 | M270749.M270710D | |
| Z-529635.TR2 | 7 | 110 | 4,572 | 5,969 | 1,651 | 12,065 | 97 | 15 | 2040 | 5600 | 4 | 168 | 251 | 165 | 510 | EE244180.236CD | |
| Z-541705.TR2 | 7 | 238 | 4,572 | 6,604 | 2,286 | 17,145 | 64 | 15 | 3750 | 9000 | 35 | 195 | 29 | 191 | 800 | M271648.610CD | |
| Z-578647.TR2 | 9 | 304 | 479,425 | 67,945 | 276,225 | 22,225 | 64 | 15 | 4600 | 11900 | 35 | 192 | 286 | 188 | 1060 | M272749.710CD | |
| Z-517499.02.TR2 | 7 | 299 | 479,425 | 67,945 | 276,225 | 22,225 | 64 | 15 | 4650 | 12200 | 33 | 203 | 302 | 198 | M272749.710CD | ||
| Z-515917.01.TR2 | 7 | 135 | 48,895 | 634,873 | 180,975 | 136,525 | 64 | 15 | 2490 | 6700 | 47 | 143 | 212 | 14 | 600 | LM772748.710CD | |
| Z-505610.TR2 | 6 | 184 | 48,895 | 6,604 | 206,375 | 15,875 | 64 | 15 | 2550 | 6800 | 45 | 15 | 223 | 146 | 610 | EE640192.261D | |
| Z-515127.01.TR2 | 7 | 122 | 498,475 | 634,873 | 1,778 | 142,875 | 64 | 15 | 2010 | 5600 | 43 | 158 | 235 | 154 | 500 | EE243196.251CD | |
| Z-528996.TR2 | 7 | 344 | 50,165 | 7,112 | 2,921 | 231,775 | 64 | 15 | 4900 | 12800 | 35 | 192 | 286 | 188 | 1130 | M274149.110CD | |
| Z-578586.TR2 | 9 | 354 | 50,165 | 7,112 | 2,921 | 231,775 | 64 | 15 | 5000 | 13200 | 35 | 192 | 286 | 188 | 1160 | M274149.110CD | |
| Z-518884.TR2 | 6 | 589 | 508 | 8,382 | 3,048 | 22,225 | 97 | 33 | 5500 | 11900 | 49 | 138 | 206 | 135 | 1000 | EE426200.331D | |
| Z-528407.TR2 | 7 | 210 | 5,207 | 7,366 | 186,502 | 1,143 | 64 | 15 | 2550 | 5700 | 48 | 142 | 211 | 139 | 480 | EE982051.901CD | |
| Z-581098.TR2 | 9 | 427 | 536,575 | 761,873 761,873 |
31,115 | 24,765 | 64 | 15 | 6000 | 15300 | 3 | 228 | 339 | 223 | M276449.410CD | ||
| Z-577417.TR2 | 9 | 431 | 536,575 | 31,115 | 24,765 | 64 | 15 | 6100 | 15400 | 3 | 228 | 339 | 223 | 1330 | M276449.410CD | ||
| Z-536948.01.TR2 | 7 | 191 | 5,588 | 7,366 | 187,328 | 138,112 | 64 | 15 | 2950 | 7600 | 34 | 198 | 294 | 193 | 640 | EE843220.291CD | |
| Z-521229.02.TR2 | 7 | 244 | 5,588 | 7,366 | 225,425 | 1,778 | 64 | 15 | 3900 | 11000 | 35 | 195 | 29 | 191 | 940 | LM377449.410CD | |
| Z-541361.TR2 | 9 | 255 | 5,588 | 7,366 | 225,425 | 1,778 | 64 | 15 | 3950 | 11200 | 35 | 195 | 29 | 191 | 960 | LM377449.410CD | |
